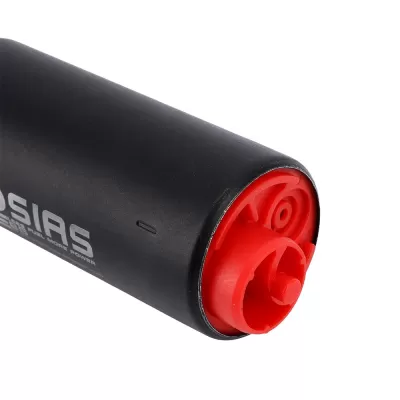

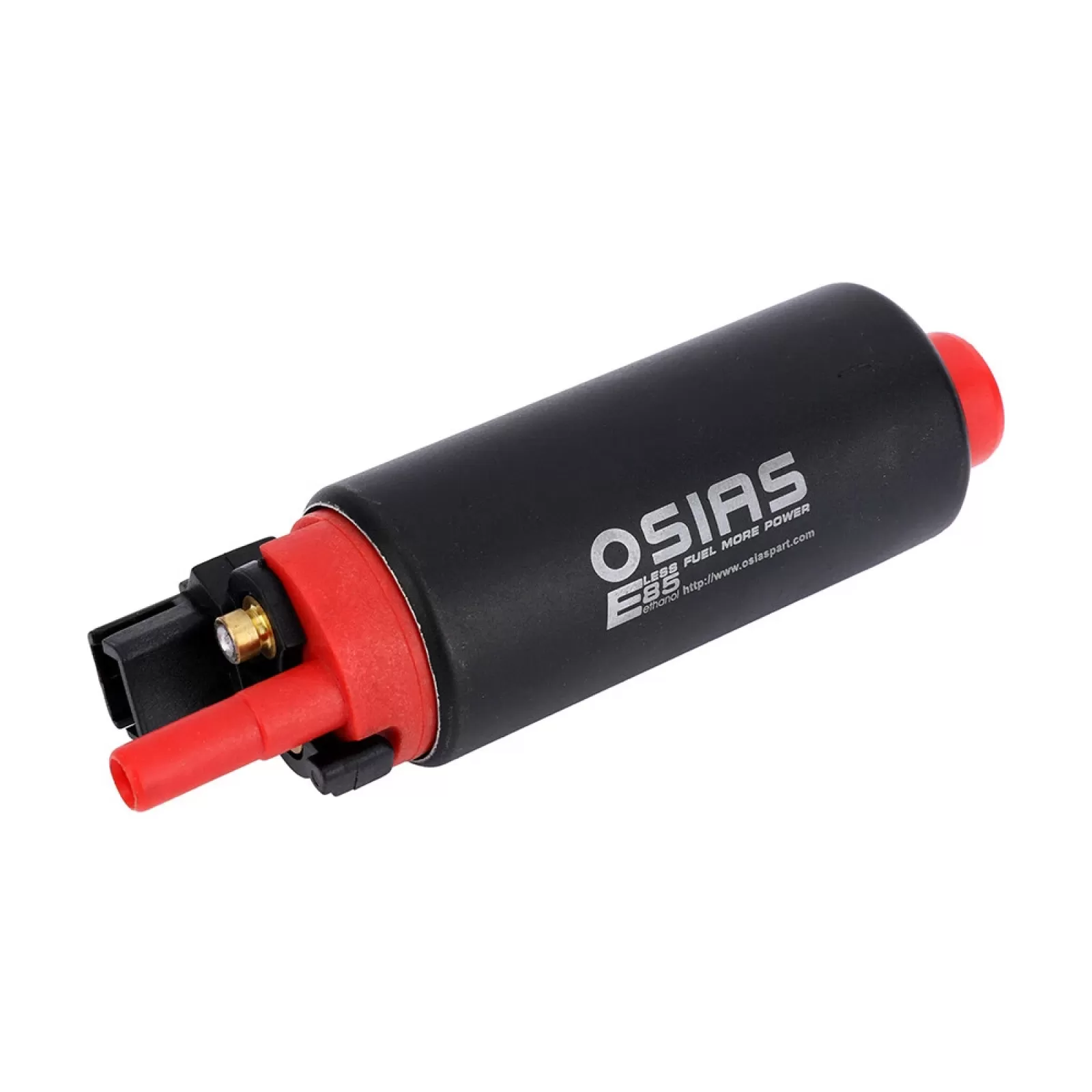

OSIAS EP381 Fuel Pump
- SKU: OT360700F
Undertaking an LS series engine swap on a GM TBI truck, van or SUV? This pump will not overload factory wiring nor will it overpower OE pressure regulators. Compatible with all LS series motors; LM7, LR4, L33, LC9, LQ4, LQ9, L92, LS1, LS2, LS6, etc. Direct replacement for AC Delco EP381.
SPECIFICATIONS:
Interchange: AC Delco EP381
Noise Output: QUIET
Condition: 100% BRAND NEW
Includes: Pump, Fuel Filter, Strainer, Tank Seals, Clamps (all items shown)
Design: Intank EFI Fuel Pump
Pressure: 58PSI (fuel pressure set by using C5 Corvette regulator/ filter or rail mounted regulator found on 2002 and earlier fuel rails)
Flow: 160LPH
Flow: 164LPH, Draws 4.6 Amps @ 45psi
Flow: 145LPH, Draws 5.1 Amps @ 60psi
Noise Output: QUIET
Condition: 100% BRAND NEW
Includes: Pump, Fuel Filter, Strainer, Tank Seals, Clamps (all items shown)
Design: Intank EFI Fuel Pump
Pressure: 58PSI (fuel pressure set by using C5 Corvette regulator/ filter or rail mounted regulator found on 2002 and earlier fuel rails)
Flow: 160LPH
Flow: 164LPH, Draws 4.6 Amps @ 45psi
Flow: 145LPH, Draws 5.1 Amps @ 60psi
FEATURES:
• Direct drop-in for all 1982-1995 GM TBI fuel pump hangers
• Provides 58psi fuel pressure required by all LS Engines
• Supports 500hp naturally aspirated
• Low amperage draw designed for factory TBI bulkhead connectors
• Stainless steel hose clamps
• Direct drop-in for all 1982-1995 GM TBI fuel pump hangers
• Provides 58psi fuel pressure required by all LS Engines
• Supports 500hp naturally aspirated
• Low amperage draw designed for factory TBI bulkhead connectors
• Stainless steel hose clamps
DIMENSIONS:
Overall Length: 5"
Length of Pump Body Metal Case: 3 3/8"
Pump Body Diameter: 1 1/2"
Inlet Diameter: 3/4"
Outlet Diameter: 3/8"
Overall Length: 5"
Length of Pump Body Metal Case: 3 3/8"
Pump Body Diameter: 1 1/2"
Inlet Diameter: 3/4"
Outlet Diameter: 3/8"
- Fitment: Compatible with all LS series motors; LM7, LR4, L33, LC9, LQ4, LQ9, L92, LS1, LS2, LS6, etc. Direct replacement for AC Delco EP381. Please check your electric fuel pump OE part number before purchase, make sure this is the right part you need
- Fitment: Direct drop-in replacement for all GM 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 TBI fuel pump. All Models TBI to LSx Swap with fuel pressure regulator, tank seal, fuel filter, strainer
- Quiet Operation: Compatible with modern ethanol-infused pump gasoline and specifically designed for quiet operation. Upgraded polymers, brushes, and commutators guarantee consistent flow & amperage draw while maintaining quiet operation
- High Performance Fuel Pump: The High Performance In-Tank Fuel Pump is designed for in-tank mounting on high performance naturally aspirated and forced induction vehicles. Designed for high output naturally aspirated and forced induction EFI vehicles
- Quick & Easy to Installation: Drop-in replacement, no modification necessary. Replace all worn components at once using our Fuel Pump comprehensive install kit including fuel pump, fuel pressure regulator, strainer. Installation Notes: Professional installation is always recommended
- Availability: In Stock
$59.99
Undertaking an LS series engine swap on a GM TBI truck, van or SUV? This pump will not overload factory wiring nor will it overpower OE pressure regulators. Compatible with all LS series motors; LM7, LR4, L33, LC9, LQ4, LQ9, L92, LS1, LS2, LS6, etc. Direct replacement for AC Delco EP381.
SPECIFICATIONS:
Interchange: AC Delco EP381
Noise Output: QUIET
Condition: 100% BRAND NEW
Includes: Pump, Fuel Filter, Strainer, Tank Seals, Clamps (all items shown)
Design: Intank EFI Fuel Pump
Pressure: 58PSI (fuel pressure set by using C5 Corvette regulator/ filter or rail mounted regulator found on 2002 and earlier fuel rails)
Flow: 160LPH
Flow: 164LPH, Draws 4.6 Amps @ 45psi
Flow: 145LPH, Draws 5.1 Amps @ 60psi
Noise Output: QUIET
Condition: 100% BRAND NEW
Includes: Pump, Fuel Filter, Strainer, Tank Seals, Clamps (all items shown)
Design: Intank EFI Fuel Pump
Pressure: 58PSI (fuel pressure set by using C5 Corvette regulator/ filter or rail mounted regulator found on 2002 and earlier fuel rails)
Flow: 160LPH
Flow: 164LPH, Draws 4.6 Amps @ 45psi
Flow: 145LPH, Draws 5.1 Amps @ 60psi
FEATURES:
• Direct drop-in for all 1982-1995 GM TBI fuel pump hangers
• Provides 58psi fuel pressure required by all LS Engines
• Supports 500hp naturally aspirated
• Low amperage draw designed for factory TBI bulkhead connectors
• Stainless steel hose clamps
• Direct drop-in for all 1982-1995 GM TBI fuel pump hangers
• Provides 58psi fuel pressure required by all LS Engines
• Supports 500hp naturally aspirated
• Low amperage draw designed for factory TBI bulkhead connectors
• Stainless steel hose clamps
DIMENSIONS:
Overall Length: 5"
Length of Pump Body Metal Case: 3 3/8"
Pump Body Diameter: 1 1/2"
Inlet Diameter: 3/4"
Outlet Diameter: 3/8"
Overall Length: 5"
Length of Pump Body Metal Case: 3 3/8"
Pump Body Diameter: 1 1/2"
Inlet Diameter: 3/4"
Outlet Diameter: 3/8"
