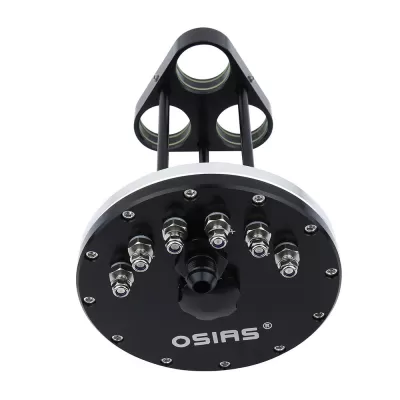

OSIAS Fuel Cell Single/Twin/Triple Fuel Pump Hanger With Filler. V2 model with 12x140mm bolt pattern. Suits 39-40mm pumps.

Anodized black, this triple fuel pump hanger can be fitted with one, two or three pumps, and has triple stainless electrical terminals allowing the pumps to be staged separately. E85 ready with teflon seals and intank hose and viton o-rings.

These hangers suit the new V2 fuel cells but are also ideal for retrofitting an EFI fuel pump into older steel tank vehicles, or integrating a high flow pump setup into a custom tank. See the linked items for steel or alloy weld on rings for mounting, fuel pumps, fittings and hose. Adjustable height – suits tank depth of tbc or deeper with longer hose. Filler cap included. O-Ring in hanger base. Single AN-10 O-Ring Port. O-ring seal to tank / mounting ring. This model suits 39-40mm pumps from Walbro / TI Automotive such as the GSS34x, GSS35x, 460, 525 etc.

OSIAS fuel pump brackets have been designed to attractively mount and insulate a variety of fuel pumps. The range includes brackets for single or twin-mount configuration of 39mm and 38mm pumps, engineered from precision alloy, and hardcoat anodised to enhance your fuel system installation.

OSIAS V2 Fuel Cells and Accessories such as this item now have a 12x140mm filler bolt pattern (vs the older 12×120.5mm bolt pattern). This is to accommodate larger accessories such as the Triple Pump Hanger.

V1 Accessories now come with a ALY-104BK adapter plate to allow them to bolt to the new OSIAS Fuel Cell range. V2 accessories will not fit a V1 fuel cell.

All OSIAS products come with a 2 year warranty.
